MultiLab®
Smart easy connect docking concept with split filter for fast and secure transitions between processes
Special Features:

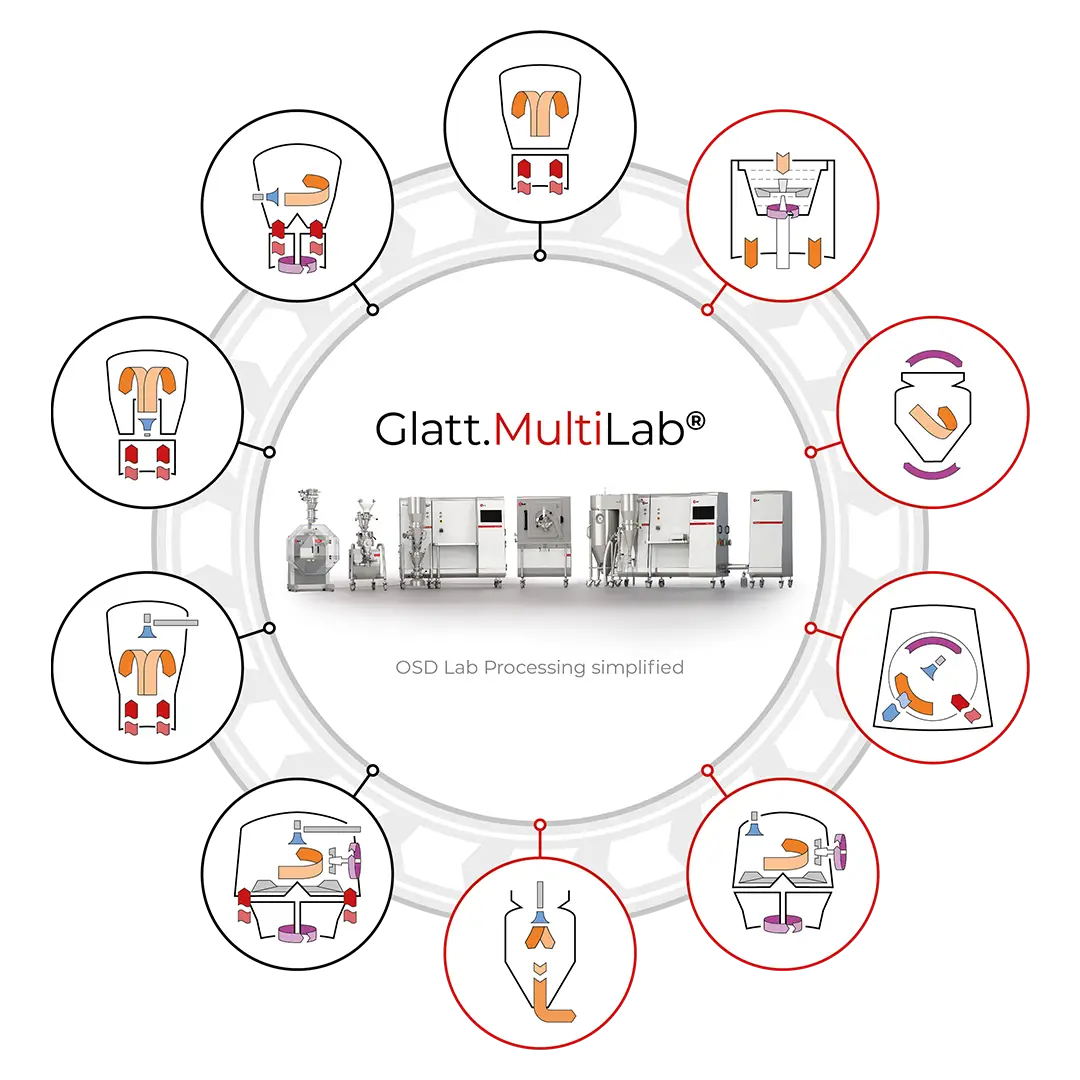

Full range of OSD production
All traditional Glatt processing technologies are available as modules that can be easily and tool‑free connected to the base air‑handling/control unit.
This includes:
- Batch drying
- Fluid bed and wet granulation
- Integrated granulation lines
- Wurster pellet coating
- Tablet coating
- Container mixing
- The innovative TwinPro®

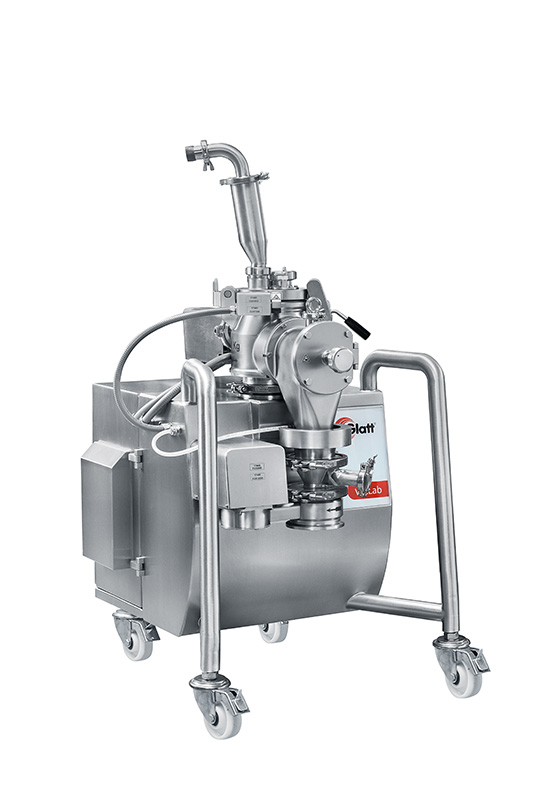

MultiLab® VG.Lab
flexible vertical granulator for maximum efficiency
The VG.Lab module delivers high‑shear granulation for fast production of dense, high‑quality granulates. It shortens processing time without compromising quality, supported by a newly integrated sieve technology. Multiple rotor designs and sieve inserts ensure optimal adaptability. Temperature‑controlled vessels are available in 10 liter and 15 liter, with additional options for very small batches down to 0.1 liter.
Combined with other MultiLab® process modules, the VG.Lab is a core component of a high‑performance laboratory granulation line.

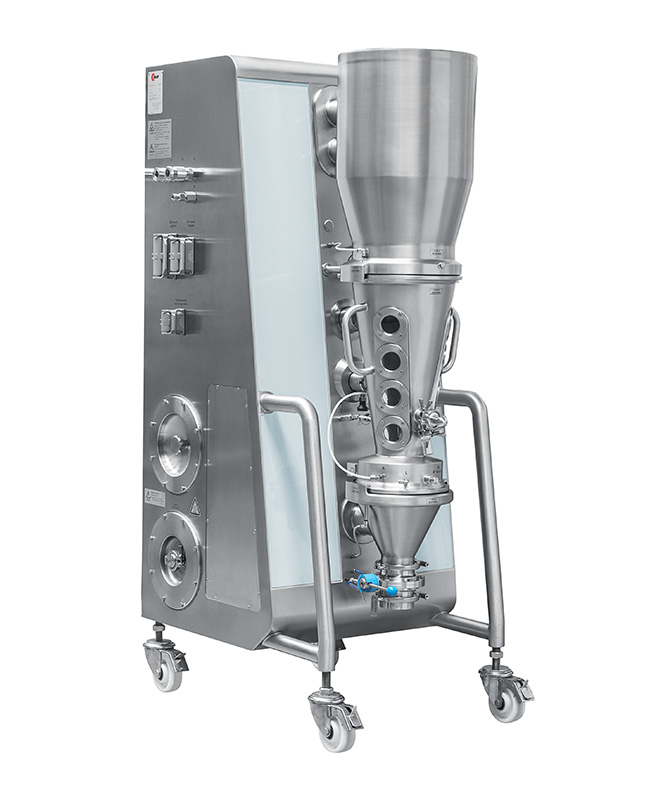

MultiLab® GPCG.Lab
the multifunctional solution for all fluidized bed processes
The GPCG.Lab is designed for granulation, drying, and coating in trusted Glatt quality. It supports up to six different process combinations, making it the most versatile module within the MultiLab® system.
Features include:
- Combo containers in 3 liter, 6 liter, and 10 liter
- New Multiport system with inserts for TopSpray and HS Wurster (bottom/tangential spray)
- Patent‑pending filter technology with two established filter systems
- Ideal as part of a multifunctional laboratory granulation line
- Enables closed product transfer when combined with the VG.Lab
- Optional bottom discharge allows closed emptying into a container; in combination with the CM.Lab and a product conveying system, dried product can also be discharged via closed vacuum transfer

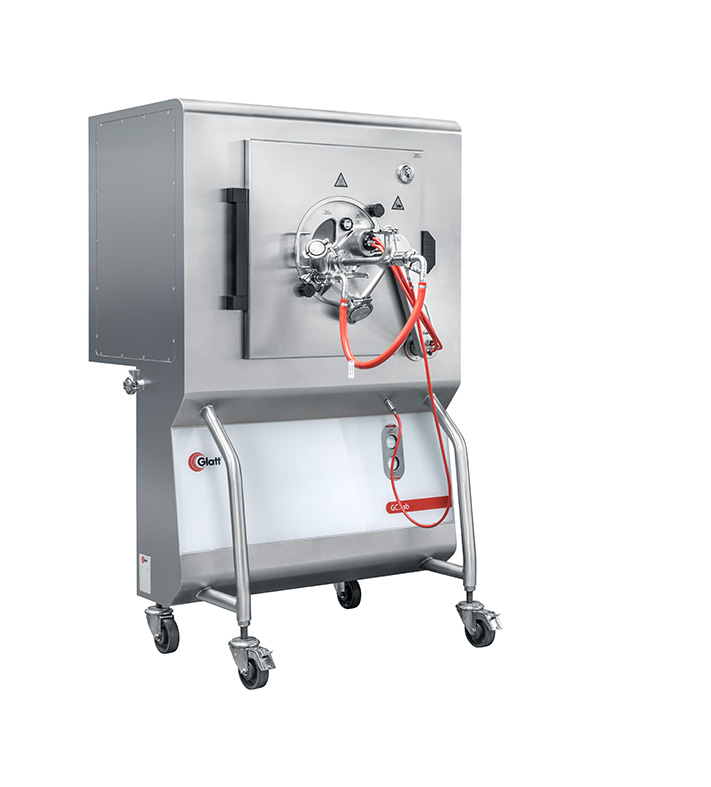

MultiLab® GC.Lab
superior performance for sophisticated film coating
The GC.Lab module is a highly efficient laboratory coater, specifically developed for optimized coating at a very small scale. A flat spray nozzle equipped with patented ABC (Anti‑Bearding‑Cap) technology ensures homogeneous, adjustable spraying and reproducible results.
- Exchangeable coating pans: 2.5 liter, 5 liter, 9 liter, 12 liter
- Working range from 1.3 liter to 12 liter
- Perfect integration into the MultiLab® workflow for film‑coating applications

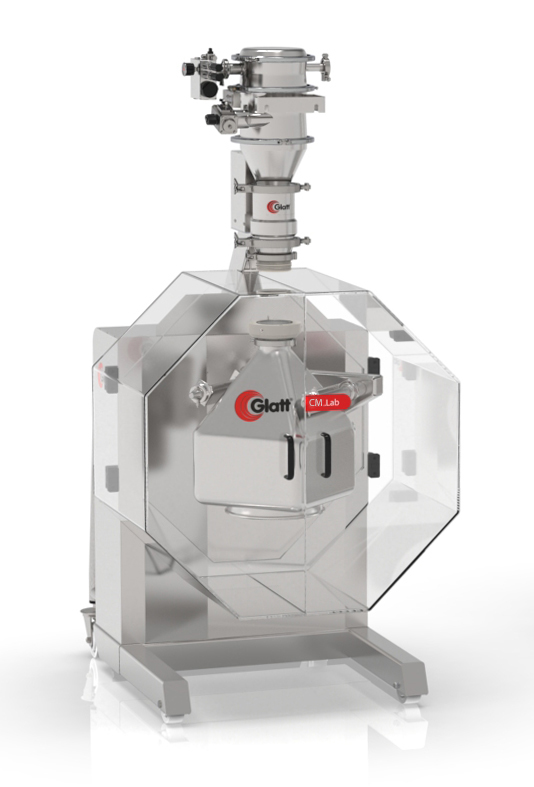

MultiLab® CM.Lab
mobile container blender for small batches
The CM.Lab blender is ideal for processing small product quantities and integrates seamlessly into the modular MultiLab® platform. Designed as a mobile unit, it supports containers in the sizes:
1 liter, 2 liter, 4 liter, 5 liter, 8 liter, 10 liter, 25 liter, and 50 liter
This module provides maximum flexibility for blending tasks, enabling a fully connected laboratory granulation line with all upstream and downstream steps in one system.

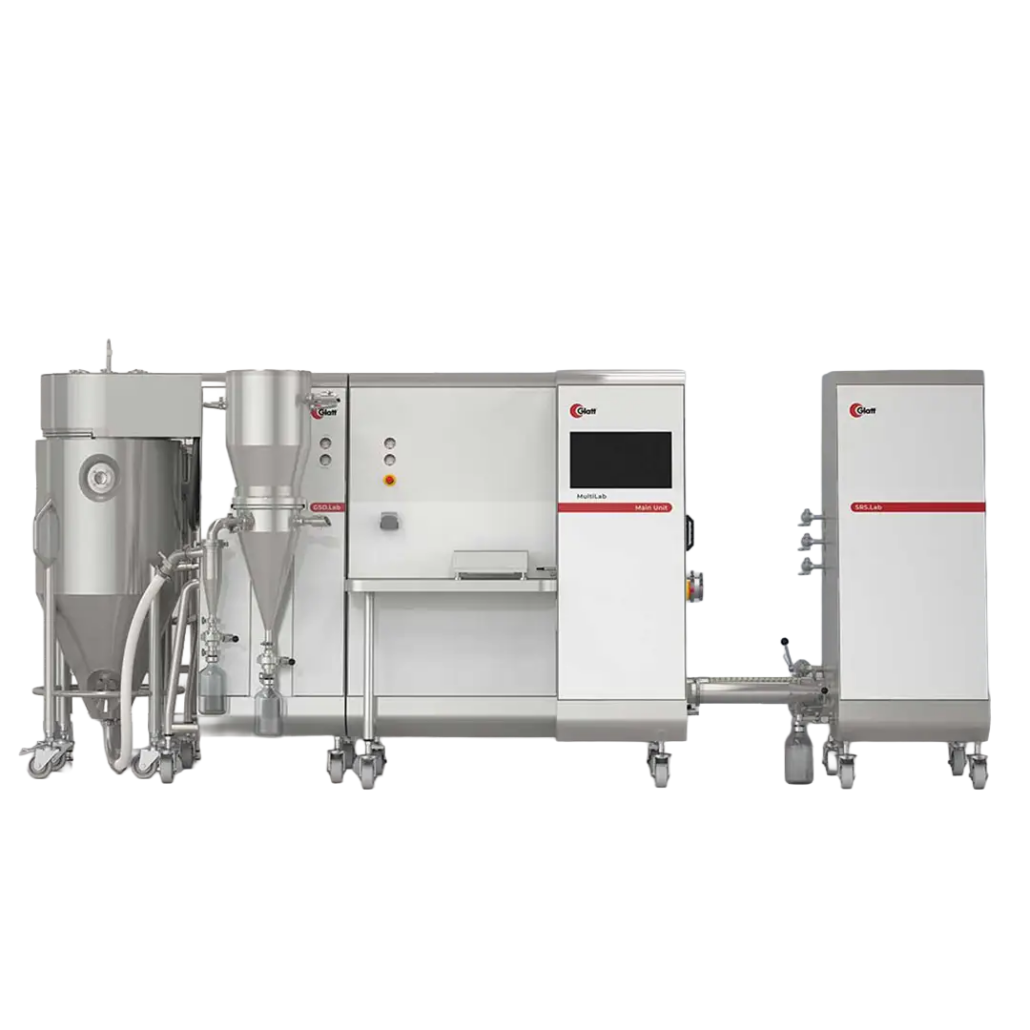

MultiLab® GSX.Lab
the new spray dryer at laboratory scale
The GSX.Lab spray dryer brings advanced pharmaceutical spray drying capabilities to the modular MultiLab® platform.
Engineered with pharmacists for pharmacists, the GSX.Lab delivers process development, formulation screening, and precise particle engineering under full GMP conditions. He enables safe processing of even highly potent APIs, seamless digital control, and a clear, reproducible scale‑up. Moreover, the GSX.Lab is the only laboratory spray dryer with Part 11–compliant, production-scale SCADA system as standard.
